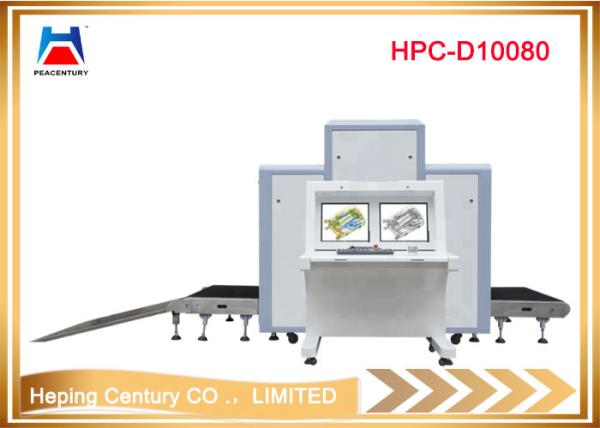

Airport security equipment used x ray airport baggage luggagescanner machines
Specifications:
Tunnel size: 1000(W)x800(H) mm
Conveyor speed:0.2m/s
Conveyor max load: 200kg
Single inspection dosage: <1.5upGy
Wire resolution: 0.1mm metal line
Steel penetration: 30mm amor plate
Film safety: for ISO 1600
Maxmum leakage radiation: <0.3ugy/H
Description:
Image performance system
X-ray sensor: 1 Type photo-diode array detector, 12bit
Monitor: High resolution 17inch color led display
Color quality: 24 bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to diplay object which is behind high absorption mass distinctly
Low penetrate strength display: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Multi-energy function
Multi-energy color: display organic material for orange, display inorganic material for blue, and display mixture for green
High enery/low energy: switch to display tow energy type, high energy stands for metal etc, low energy stands for non metallic
Auxilitay function for drugs &explosives: help to detect such dangerous material as drugs&explosives ect
Audible&visible alarm: give sound and visible signal when confirming to condition
Main Advantages:
Storage temperature: -20°C to 60°C
Operating temperature:0 °C to 45 °C
Relative humidity: 20 to 95% non-condensing
System power:220VAC (±10%) 50±3HZ
Power wastage: 1.0KW(max)
Noise: <63DB
Application places:
Factory, airport security, stadium, entertainment, etc
General Information:
| Place of Origin | Shenzhen, China |
| Brand Name | peacentury |
| Model Number | HPC-D10080 |
| Certification | ISO9001: 2008 |
Commerce clauses:
| MOQ: | 1 pair |
| Price: | |
| Package Weight: | |
| Payment Terms: | By T/T, Western Union, cash |
| Supply Ability: | 3000pcs / month |
| Warranty time: | One year |
|
|
