| Brand Name : | PEACENTURY |
| Model Number : | HPC-D100100 |
| Price : | Negotion |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash |
| Supply Ability : | 1500pcs in a week |
| Delivery Time : | 5-8 working days |

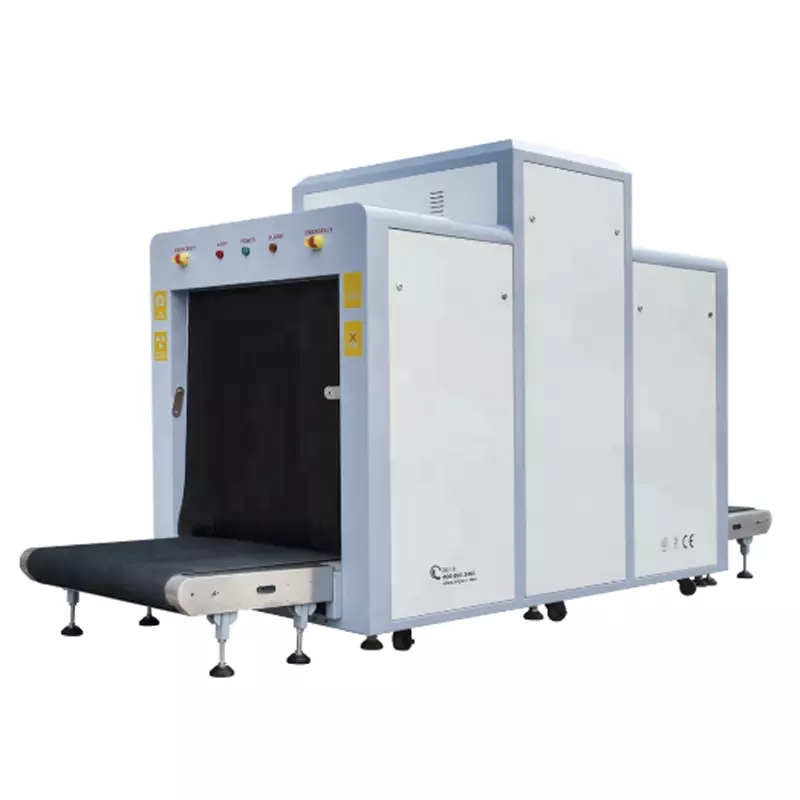

Super big tunnel size X-ray machine Baggage Scanner for Airport
Model No.: HPC-D100100
Basic Information
| Tunnel size | 100cm(W)* 100cm(H) |
| Operating Voltage | 110V / 220V |
| Power Consumption | 1.4KVA |
| Convey speed | 0.2m / s |
| Max load | 1500 KG |
| Penetration | 30mm steel plate |
| Relative Humidity | 0°c--45°c |
Technical Specification
| X-ray sources(Vertically upward) | 140kV, 0.5mA |
| Maximum leakage | from the cabinet 5cm‹2μ Sv/h(0.2mR/H) |
| Standard Data | ‹1μ Sv/h (0.1mR/h) |
| Standard leakage radiation | meets with GB15208-94 standard |
| Spatial resolution | Ø 0.10mm wire |
| Single radiation dose | 1μ Sv /h |
| Generator cooling/working period | Sealed oil bath with forced air/ 100% |
X-ray sensor
L type photo-diode array detector, 12bit
Intensity of black: 4096 (12bits)
Equpment Groundsee: Sealed oil bath with forced air
Host Nosise: 60dB(A)
Images Display
Black and white, multi-energy, pseudo-color, variable multi-energy, removed orgnics, remove inorganics, image inverson, image drawing back, strong penetration, saturation scanning, gray scale scanning, bright and dark enhancement, edge enhancemnt, image super-enhanced, high-density alarm, penetration increasing of local image through, sub-image enhancement through gray-scale, variable absorption rate of image, display frame og an additional image
Image enlargement
zones: 2, 4, 8, 16 times magnification
image storage: 10000 pieces of picture, can automatically remember
Other Features
Dae and time display, the opertor identification number, equipment No., automatically insert the image, was seized automatic counting and cleared luggage, equipment, x-ray power of time accumulated counts, the state of equipment display, scrolling direction change, black and white / color images switch, the Power On Self Test display, automatic maintenance function.
|
|
