| Brand Name : | PEACENTURY |
| Model Number : | HPC-D100100 |
| Price : | Negotion |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash |
| Supply Ability : | 1500pcs in a week |
| Delivery Time : | 5-8 working days |

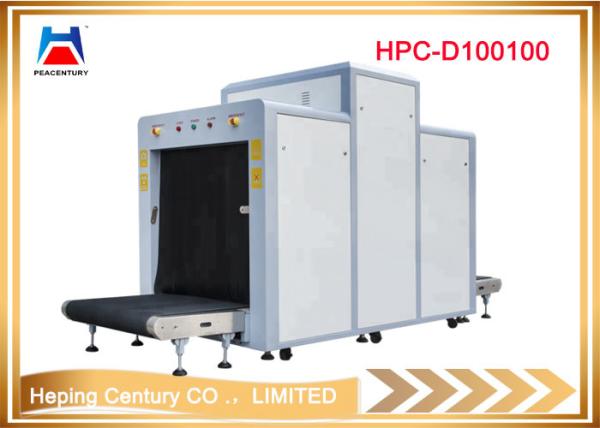

Wholesale price 100100 X ray baggage scanner with multi energy images
| General Specification | |
| Tunnel Size | 1000(W)*1000(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 200kg |
| Dose per Inspection | <1.7μGy/h |
| Resolution | 32AWG to 40AWG |
| Spatial resolution | Level: dia1.3mm, Vertical: dia1.0mm |
| Penetrate resolution | 24WG to 34AWG |
| Penetration | 27mm to 40mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.1 μGy/h (at a distance of 5cm From external housing) |
| Generate direct | Downward |
| Generate anger | 80 degree |
| Anode Voltage | 100~160Kv |
| Anode power | 0.4 to 1.2mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
| Installation Data | |
| Operation temperature/Humidity | 0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20℃-60℃/20%-95%(non-condensing) |
| Operation Power | 220VAC(±10%)50±3Hz |
| Power Consumption | 1.0 KW (max), 1.0KW(working) |
| Noise | <58db |
| Feature | |
| 1.It is the first full-digital security detector in China. Clear
image and strong anti-interference function 2.Embedded Linux operating system, more efficient and stable, with multi-core ARM CPU, system structure is simple, low power consumption, energy conservation, and environmental protection function . 3.Each machine is tested by strict high and low temperature test before leaving the factory, can run for more than 10000 hours without failure 4.Real parameters: the test report issued by the ministry of public security. The test report results are more authentic and reliable. 5.The main parts of the products are famous domestic brands. | |
Applied fields:It’s widely used in the shopping malls, subways,
schools, factories and other infrastructures.
Image System:
1.X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit
Deep
2.Monitor: High Resolution Color, LCD Accord, 17 or 19inch
3.Image Processing: Edge enhancement, image strengthening, image
lightening,, reducing darkening, image returning, image retrieval.
4.Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
5.Image Processing: 24bit for processing real time
6.Image storage: Storage 60000 pictures in real time
7.Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
8.Multi-energetic distinguish objects: organic objects in orange,
inorganic objects in blue, mixture in green
9.High-energy/low energy : switch from high energy to low energy
10.Assist to detect drug and explosive powder
|
|
