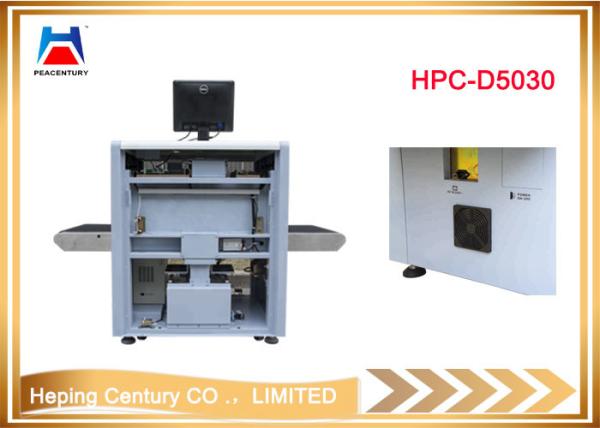

5030A X-ray baggage scanner for airport bus station and railway station


Alarm by sounds&light: Alarm by sound and light when confirm to condition

Network interface: It can connect to local area network and support multi-terminal check baggage at same time.

Safty ray: Transmit ray under automatic control, avoiding any baggage missing.

Image monitoring for user-friendly: The monitor use fold, rotary system, operators, adjusts the monitor position willfully according to our own need, reduce wearily.

Simple operation by mouse: Without keyboard and work table, control by mouse, save space.

Turn off a key control: Turn off the machine only need one step, revolove the key then the equipment automatic secuirty close down and no need complex steps.

Eagle-eye: It can be expediently observing enlarged area.

Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for maintenance.



2.Technical data

Tunnel size: 505(W)x305(H) mm

Conveyor speed:0.16m/s

Single inspection dosage: <0.1mr

Wire resolution: 0.1mm metal line

Steel penetration: 5mm amor plate

Film safety: for ISO 1600

Maxmum leakage radiation: <0.1mr/H



3.X-Ray generator

Orientation: vertically upward

Tube current: 0.4-0.5MA(adjustable)

Anode voltage: 80KV(adjustable)

Angle: 60 degree

Generator cooling/working periods, sealed oil bath with forced air/100%



4.Image performance system

X-ray sensor: 1 Type photo-diode array detector, 120bit

Monitor: High resolution 17inch color led display

Color quality: 24 bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to diplay object which is behind high absorption mass distinctly

Low penetrate strength display: increase brightness of image/decrease brightness of image

Image recurrence: display previous twenty images and process any one of them

Image restoration: restore image to initial status at the time of stopping conveyor

Image storing: real time store any image and process it in operation status



5.Multi-energy function

Multi-energy color: display organic material for orange, display inorganic material for blue, and display mixture for green

High enery/low energy: switch to display tow energy type, high energy stands for metal etc, low energy stands for non metallic

Auxilitay function for drugs &explosives: help to detect such dangerous material as drugs&explosives ect

Audible&visible alarm: give sound and visible signal when confirming to condition



6.Operating environment

Storage temperature: -20°C to 60°C

Operating temperature:0 °C to 45 °C

Relative humidity: 20 to 95% non-condensing

System power:220VAC (±10%) 50±3HZ

Power wastage: 1.0KW(max)

Noise: <65DB
