| Brand Name : | PEACENTURY |
| Model Number : | HPC-D8065 |
| Price : | Negotion |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash |
| Supply Ability : | 1500pcs in a week |
| Delivery Time : | 5-8 working days |

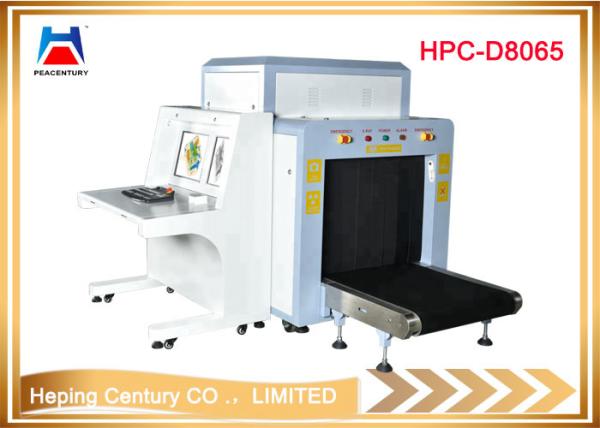

220v voltage security baggage scanner xray inspection scanner HPC-8065
Specification
Tunnel Size:800(W)*650(H)mm
Conveyor Speed:0.22m/s
Conveyor Max Load……200kg
Dose per Inspection……< 1.6μGy/h
Resolution……………< 0.0787mm Copper Wire
Spatial resolution…………Level: dia1.3mm, Vertical: dia1.0mm
Penetrate resolution………Dia 0.511mm
Penetration…………34mm Steel
Film Safety…………Guarantee ISO1600 Film
X-ray Leakage………<0.1μGy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct: Bottom to up
Generate anger: 80 degree
Anode Voltage…………100~160Kv
Anode power…………0.4 to 1.2mA
Cooling / Duty Cycle………Oil Cooling /100%
Image System
X-ray Sensor………………L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor……………………High Resolution Color, LCD Accord, 17 inch
Image Processing…………Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level……………4096
Image Max Resolution………1024 * 1280 pixel
Image Processing……………24bit for processing real time
Image storage……………Storage 60000 pictures in real time
Zones & Zoom……………1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects …………organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energe ………………………switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data
Operation temperature/Humidity…… 0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity……… -20°C-60°C/20%-95%(non-condensing)
Operation Power………………………220VAC(±10%)50±3Hz
Power Consumption……………………1.0 KW (max)
Noise: <58db
|
|
