| Brand Name : | PEACENTURY |
| Model Number : | HPC-D150160 |
| Price : | Negotion |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash |
| Supply Ability : | 1500pcs in a week |
| Delivery Time : | 5-8 working days |
PEACENTURY Large sizes cargo X ray baggage scanner 150150
General Specification | |||
Tunnel Size | 1500(W)*1600(H)mm | Conveyor Speed | 0.22m/s |
Conveyor Max Load | 200kg | Dose per Inspection | < 1.7μGy/h |
Resolution | < 0.0787mm Copper Wire | Spatial resolution | Level: dia1.0mm, Vertical: dia1.0mm |
Penetrate resolution | Dia 0.254mm | Penetration | ≥ 38-40mm Steel |
Film Safety | Guarantee 1900Film | X-ray Leakage | <0.05μGy/h (at a distance of 5cm From external housing) |

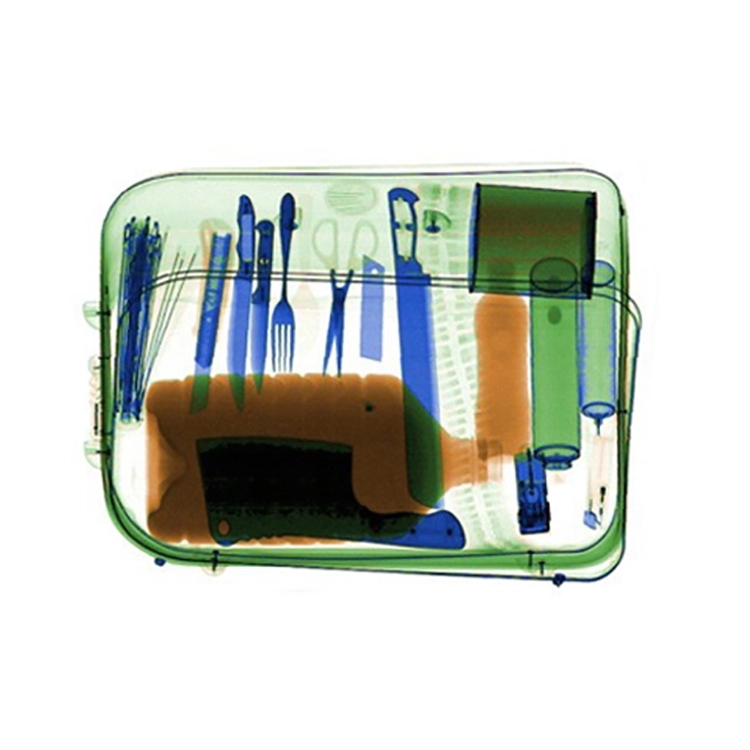

Multi-energetic distinguish objects | organic objects in orange, inorganic objects in blue, mixture in
green | High-energy/low energe | switch from high energy to low energy |
Advantages:
1. Famous brand spare parts
a. Hamamatsu brand detector from Japan
2. Protective cover on lead curtain to avoid lead pollution
3. Sound and light alarm
4. Local network supported
Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit
Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image
lightening , reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zoom: 2, 4, 8, 16 Times Enlarge, Whole screen continuous
observation
Multi-energetic distinguish objects: Organic objects in orange,
inorganic objects in blue, mixture in green
High-energy/low energy: Switch from high energy to low energy
Assist to detect drug and explosive powder
Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
Operation Power: 220VAC(± 10%)50± 3Hz
Power Consumption: 1.0 KW (max), 1.0KW(working)
Noise: <58dB.
|
|
