| Brand Name : | PEACENTURY |
| Model Number : | HPC-D5030A |
| Price : | Negotion |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash |
| Supply Ability : | 1500pcs in a week |
| Delivery Time : | 5-8 working days |

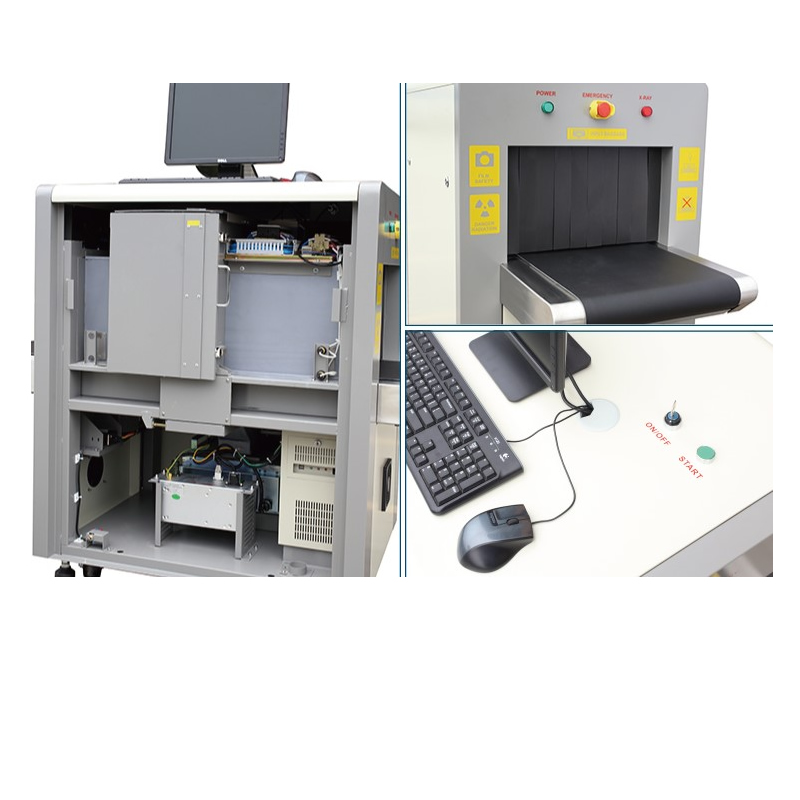

500*300 mm tunnel x ray baggage luggage scanner multi energy
FEATURE:
Alarm by sounds & light::Alarm by sounds and light when conform to condition.
Network interface:Could be connect local area network and support multi-terminal check baggage at same times
Safety ray:Transmit ray under automatic control, avoids the miss
Image monitoring for user-friendly:The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
Simple operation by mouse:Without keyboard and work table, control by mouse, save space.
Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
Eagle-eye:Could be expediently observing enlargement area.
Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA:
Tunnel Size: 500(W)×300(H)mm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 20 kg
Single inspection dosage: < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 8MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation: <0.3µGY/H
X-RAY GENERATOR:
Orientation: Vertically Upward
Tube Current: 0.4~0.5MA(adjustable)
Anode Voltage: 80 KV(adjustable)
Angle: 60°
Generator cooling/working periods Sealed oil bath with forced air/100%
Image performance system:
X-ray sensor: l type photo-diode array detector, 12bit
Monitor: high resolution 17inch color lcd display
Color quality: 24 bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorbtivity mass distinctly
Low penetrate strength display: increase contrast of low absorbtivity mass (easy to penetrate) to display it distinctly
Magnifier: function of partial enlargement
Brightening/dimming: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Multi-energy function:
Multi-energy color: display organic material for orange, display inorganic material for blue, and display mixture for green
High energy/low energy: switch to display two energy type, high energy stands for metal etc., low energy stands for nonmetallic
Auxiliary function for drugs & explosives: help to detect such dangerous material as drugs & explosives etc.
Audible & visible alarm: give sound and visible signal when conforming to condition
OPERATING ENVIRONMENT:
Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise: <65D
|
|
