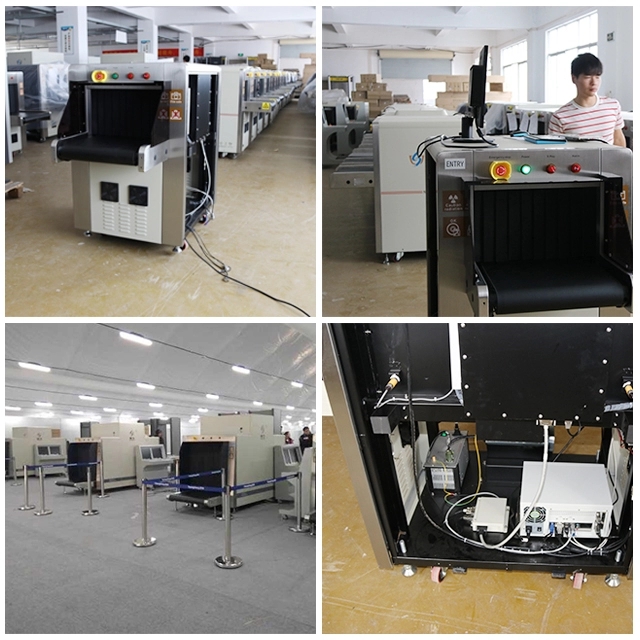

X ray airport machine luggage scanner using for pallet baggage inspection

Technical Specifications

• Steel Penetration: 38mm
• Single inspection dosage: < 1.6μGy
• Leakage radiation: <0.2µGy/h
• Film Safety: Guarantee ISO1600 Film
• Power Requirement: 220V AC (±10%) 50±3Hz
• Power consumption: 1.0KW (Max)
• Noise level: <58dB

• Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)

• Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

• Gross Weight: 1300kgs, 10CBM
• Detector: L-shape dual energy semi-conductor PD array detector module(24bit)

X-Ray Generator Specifications

• Voltage: 70-160kV (Adjustable)
• Tube Current: 0.4 ~1.0mA (Adjustable)
• Cooling: Sealed oil bath with forced air
• Duty Cycle: Rated for 100%Duty Cycle
• Beam Direction: Downward
• Beam Angle: 60°
• Detector: L-shaped Array

Image Display

• Display: 2* 19’’ High Resolution LCD Monitor
• Display Resolution: 1280*1024;24 bit/pixel Color
• Contrast Sensitivity: 24 Visible Levels,4096 Gray Level
• Image storage: 100,000 pictures in real time (can be customized)
• Zoom: 64 Times Enlarge, Whole screen continuous observation
• Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
• Edge enhancement: Object contour edge is more distinct
• Super image enhancement: Image detail is more distinct
• High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
• Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
• Brightening/dimming: Increase/Decrease brightness of image
• Image recurrence: Display the previous twenty images and process any one of them
• Image restoration: Restore image to initial status
• Assist to detect drug and explosive powder

Special features

• Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
• Safety ray: Ray is transmitted under automatic control, avoiding the error
• One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
• Eagle eye: Capable of expediently observing the magnifying area
• Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Package and shipping

• Package: two plywood boxes package;
• Size of Package: 285*146*208mm 8.65CBM, 125*70*145mm 1.29CBM, total 9.94 CBM;

Application

Railway, Highway, Post Office, Logistics, Exhibition Centre, Huge-scale meetings, Activities etc....
