    High performance UVSS under vehicle inspection system with qualified camera

    Ask Lasest Price
    Brand Name : PEACENTURY
    Model Number : HPC-F
    Price : Negotion
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash
    Supply Ability : 50/Week
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    High performance UVSS under vehicle inspection system with qualified camera

    High performance UVSS under vehicle inspection system with qualified camera


    Application

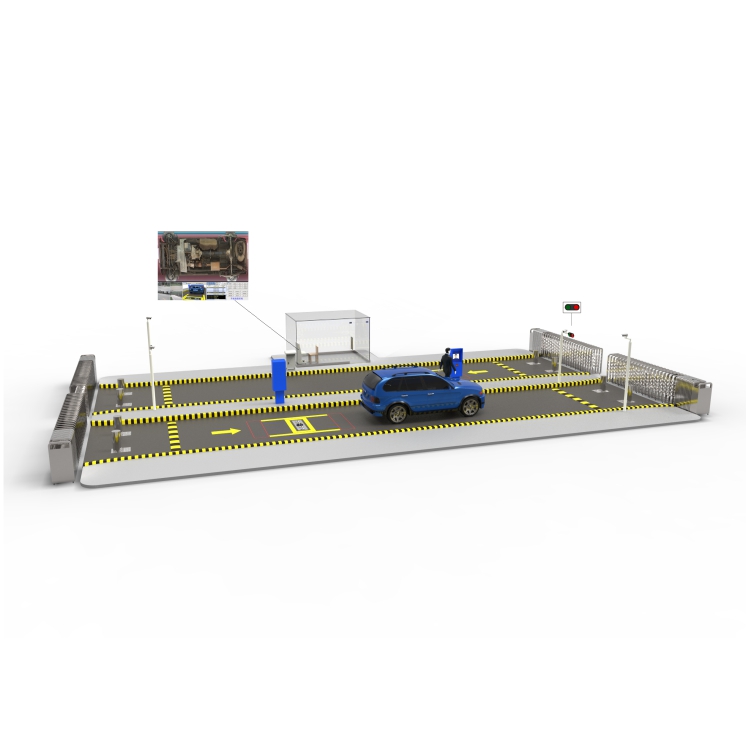

    It is used in the airport, prisons, customs and other government departments, and large public places’ parking lot for the inspection of vehicles whether there are prohibited items.
    It is used to security check for large-scale activities, exhibition entrance and exit .
    It is used for security, explosion, the safety of the bottom of the vehicle inspection.


    Features:


    1,Automatic digital linear scan camera, with high-resolution and clarity of the image.

    2,The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed any object less than 2mm in diameter.

    3,The highest IP68 water-proof grade, pressure-proof and quake-proof.

    4,Easy field work to prepare inspection processes to meet a variety of on-site needs

    5,Multiple scene image monitoring, recording function.

    6,Multi-language OSD.

    7,Image identification or RFID technoligy supporting to identify the car ID

    8,Strong scalability to easily achieve a variety of system linkage control(like Anti-collision system,Track gate etc).

    9,Multiple devices networking supporting


    Specification:

    1,Linear array CCD scan technology with Kinetic Imaging

    2,Scan Mode: Linear Scan, Ground inductive coil triggered

    3,Maximum Scanning Speed:18kHz;

    4,Vertical resolution of under vehicle image: 2048pix CCD

    5,Image resolution:12000×6144pix

    6,Car Speed Testing: 1-60km/h, suggested speed 30km/h

    7,Scanner data wire length:10m is standard, other length is optional;

    8,Under Vehicle Image Scanner: Designed with Unique Open Type Wide Field of View Under-vehicle-Image-collection Technoligy;

    9,Field of view angle: 170 degrees

    10,supplementary Illumination:320W

    11,Illumination Components: 4 single packaged LED , Lifetime: 50000h

    12,two-way Scanning

    13,Load-bearing: 50T

    14,Water-proof degree:IP68

    15,Operating Temperature: -20 to 60

    16,Scanner Weight: 105kg

    17,Scanner Dimension: 1100×280×205mm

    18,Working Voltage: DC24V

    19,Power Supply: AC110-240V/50-60Hz
